Product Details:

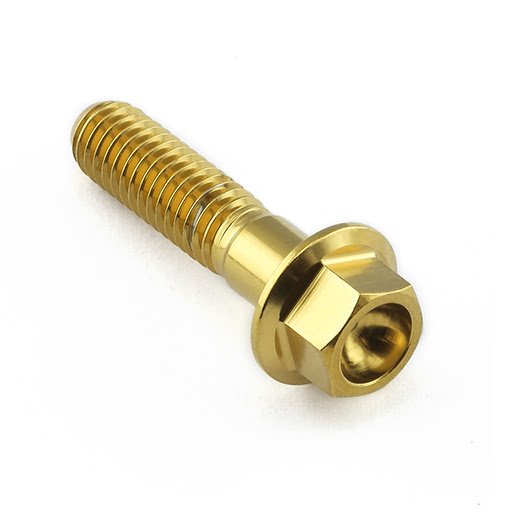

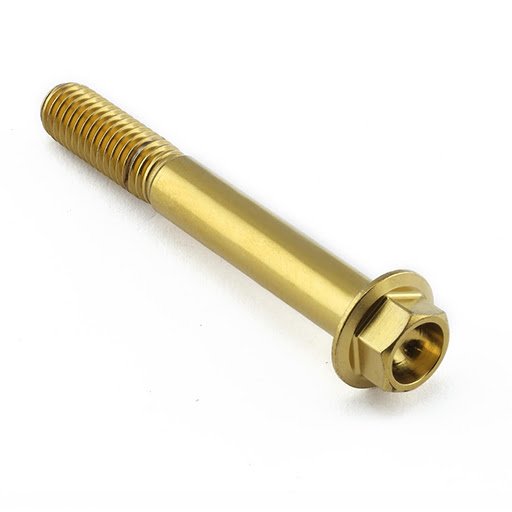

Our Brass Hex Flange Bolts are precision-engineered fasteners designed for high-performance applications requiring excellent corrosion resistance, electrical conductivity, and a secure grip. Manufactured from high-grade brass, these bolts feature a built-in washer-like flange under the head to evenly distribute load, reduce vibration, and eliminate the need for a separate washer.
Ideal for use in plumbing, electrical, automotive, and marine industries, these bolts are available in both metric and imperial sizes, fully customizable to OEM requirements. All bolts comply with ISO, RoHS, and REACH standards to ensure quality and global compliance.
Product Features
- Material: High-tensile brass (CW614N, CW617N, or as specified)
- Finish: Natural, Nickel-Plated, Chrome-Plated, or Custom Coating
- Thread Type: Metric, UNC, UNF, BSP, or customized
- Head Style: Hex with integrated flange
- Standards: ISO, DIN, ASTM, RoHS compliant
- Applications: Electrical panels, water systems, automotive assemblies, HVAC, marine fittings
Customization Options
- OEM/ODM orders accepted
- Custom thread pitch and diameter
- Logo engraving and special surface treatments
- Packing options for retail or industrial supply
General Size Chart
| Bolt Diameter (mm) | Thread Pitch (mm) | Length (mm) | Head Across Flats (mm) |
|---|---|---|---|
| M4 | 0.7 | 10 – 40 | 7 |
| M5 | 0.8 | 10 – 50 | 8 |
| M6 | 1.0 | 12 – 60 | 10 |
| M8 | 1.25 | 16 – 80 | 13 |
| M10 | 1.5 | 20 – 100 | 17 |
Other sizes available on request (UNC/UNF/BSP threads).
Why Choose Us?
- Global OEM & custom manufacturing
- ISO 9001:2015 certified
- RoHS & REACH compliant materials
- Fast lead times and secure packaging
- Exporting to over 50+ countries
