Product Details:

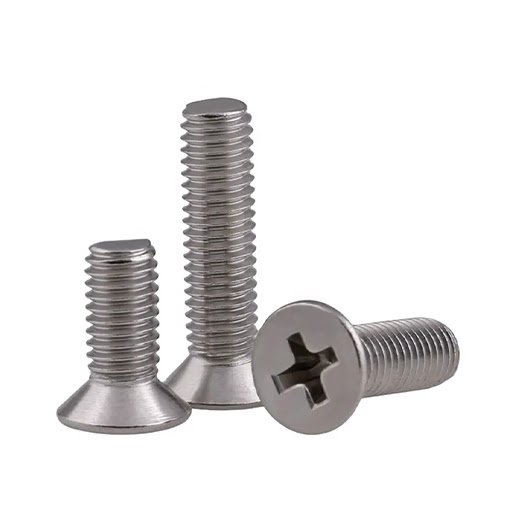

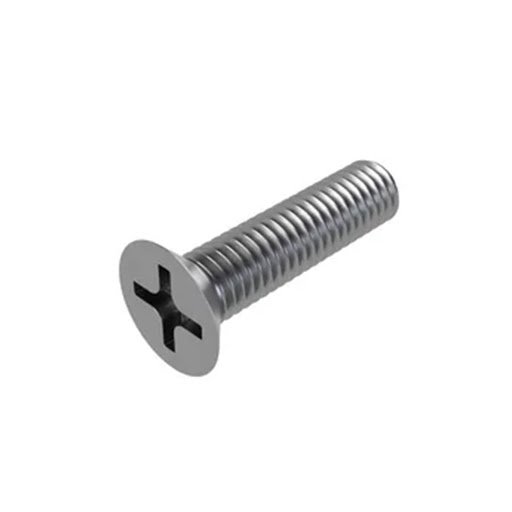

CSK Phillips Machine Screws DIN 965 ISO 7046
CSK Phillips Machine Screws DIN 965 ISO 7046 are high-quality precision fasteners designed for a wide range of applications across the electronic, automotive, and engineering industries. OEM service is available to meet custom requirements for material, threads, finishes, and packing.
Available Materials
- MS (Mild Steel / Iron)

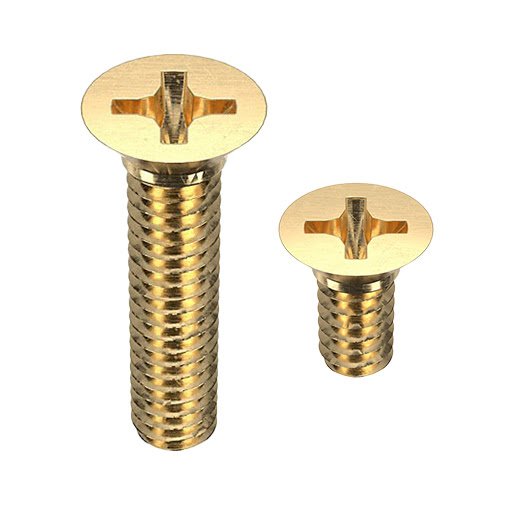

- Brass
- Stainless Steel (S.S.)
Brand Name
FIMNEX
Dimensions & Sizes
| d1 | d2 | k max. | Phillips | m approx. | t max. | Proof Load N min. |
|---|---|---|---|---|---|---|
| M2 | 3.8 | 1.2 | 1 | 2.35 | 0.95 | 600 |
| M2.5 | 4.7 | 1.5 | 1 | 2.7 | 1.25 | 990 |
| M3 | 5.6 | 1.65 | 1 | 2.9 | 1.5 | 1560 |
| M3.5 | 6.5 | 1.93 | 2 | 3.9 | 1.4 | 2100 |
| M4 | 7.5 | 2.2 | 2 | 4.4 | 1.9 | 2720 |
| M5 | 9.2 | 2.5 | 2 | 4.6 | 2.1 | 4400 |
| M6 | 11 | 3 | 3 | 6.6 | 2.8 | 6230 |
| M8 | 14.5 | 4 | 4 | 8.7 | 3.9 | 11400 |
All dimensions are in millimeters (mm).
Thread Types Available
- ISO Metric (MM Threads)
- BA Threads
- BSW Threads (Inches)
- UNC, UNF, UNEF, and NPT Threads
- BSP & BSPT (Parallel & Taper Threads)
- Any threads as per customer specifications
Finishes & Coatings
- Natural
- Golden Finish
- Silver Finish
- Nickel Plated
- Chrome Plated
- Tin Plated
- Custom coating as per specifications
Packing Options
- Bag Packaging
- Inner Plastic Packing
- Carton Packaging
- Wooden Carton Packing
Special Features
- Threads as per international Go and Not Go Gauge standards
- Deep groove for maximum pull-out resistance
- Inner diameter with close tolerance to prevent unwanted flush
Applications
- Electronic Industry
- Automobile Industry
- Engineering Industry
MOQ & Lead Time
Minimum Order Quantity: 1 Bag
Lead Time: 3 Working Days
Available Price Terms
- EX-Works
- FOB – Free On Board
- C&F – Cost and Freight
- CIF – Cost, Insurance, and Freight
