Product Details:

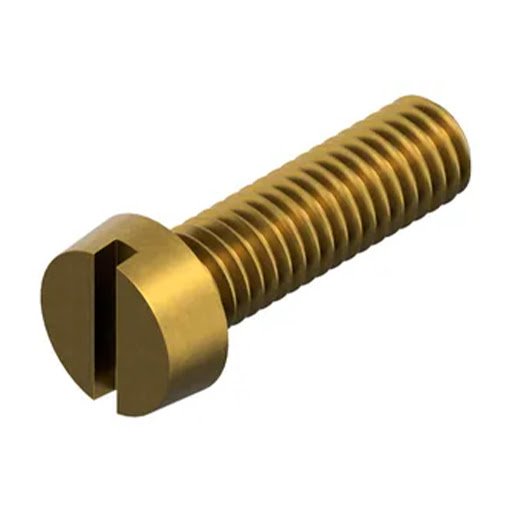

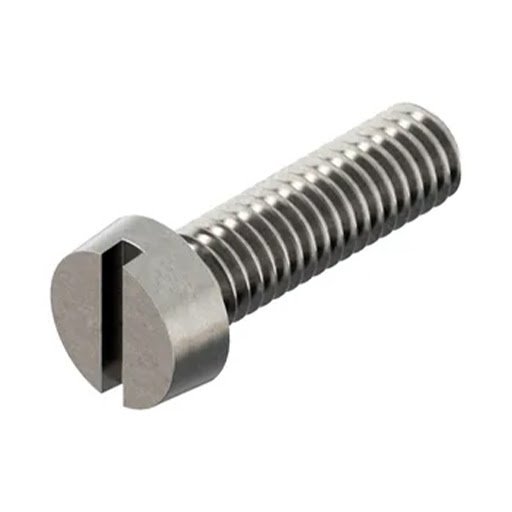

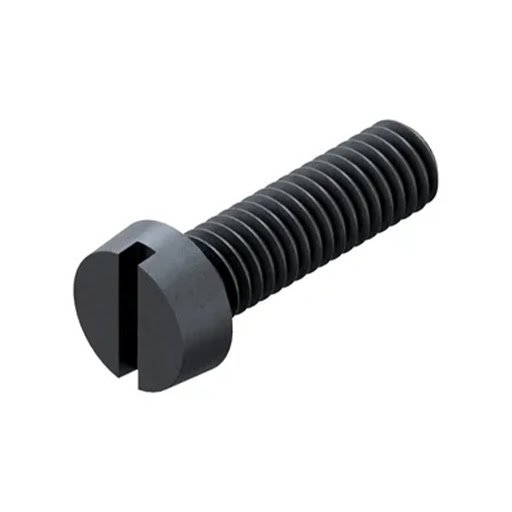

Cheese Head Screw DIN 84 ISO 1207 Metal
- MS (MILD STEEL, IRON)
- BRASS
- S.S.(STAINLESS STEEL)
| d1 | t | n | k | d2 |
|---|---|---|---|---|
| M2 | 0.6 | 0.5 | 1.3 | 3.8 |
| M2.5 | 0.7 | 0.6 | 1.6 | 4.5 |
| M3 | 0.85 | 0.8 | 2 | 5.5 |
| M3.5 | 1 | 1 | 2.4 | 6 |
| M4 | 1.1 | 1.2 | 2.6 | 7 |
| M5 | 1.3 | 1.2 | 3.3 | 8.5 |
| M6 | 1.6 | 1.6 | 3.9 | 10 |
| M8 | 2 | 2 | 5 | 13 |
| M10 | 2.4 | 2.5 | 6 | 16 |
| M12 | 2.4 | 2.5 | 7 | 18 |
| All dimensions in mm. |
Cheese Head Screw DIN 84 ISO 1207
Threads
- Customised Brass Square Nut in Thread
- ISO Metric (MM Threads)
- BA Threads
- BSW Threads (Inches)
- UNC, UNF, UNEF, and NPT Threads
- BSP & BSPT (Parallel & Taper Threads)
- Any threads as per specifications
Finishing & Coating
- Natural
- Golden Finish
- Silver Finish
- Nickel Plated
- Chrome Plated
- Tin Plated
- Any coating as per customer specifications
Packing Details
- Bag Packaging
- Inner Plastic Packing
- Carton Packaging
- Wooden Carton Packing
Special Features
- Threads as per international Go and Not Go Gauge standard
- Deep groove for maximum pull-out resistance
- Inner Diameter (ID) after threading with very close tolerance to prevent unrequired flush entering the brass dome nut
Application
- Electronic Industry
- Automobile Industry
- Engineering Industry
MOQ
1 Bag
Lead Time
3 Working Days
Available Price
- EX-Works
- FOB – Free On Board
- C&F – Cost and Freight
- CIF – Cost, Insurance, and Freight
